Moog Creates Control System for James Fisher Nuclear Hydraulic Arm

A bespoke control system to control a manipulator arm in hazardous environments.

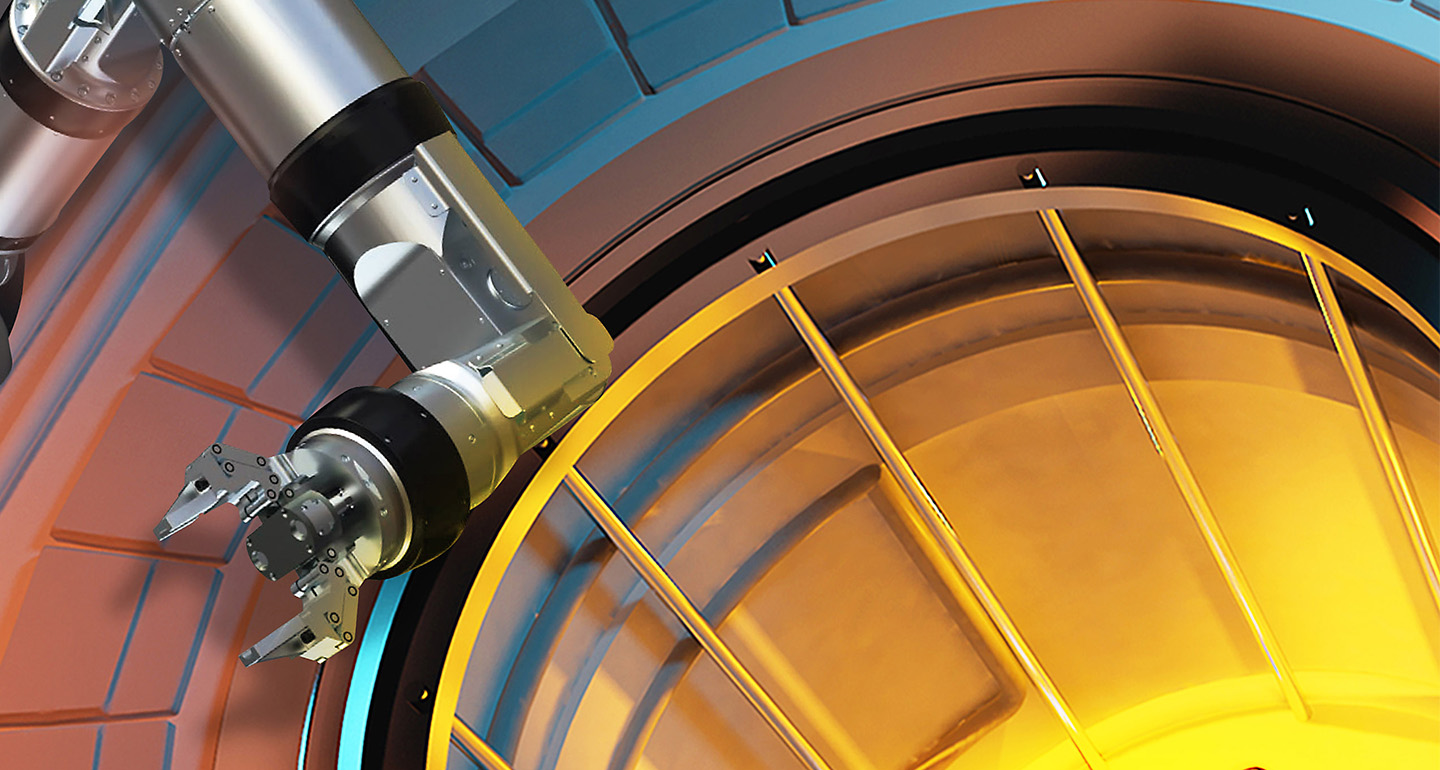

James Fisher Nuclear Hydraulic Arm

When James Fisher Nuclear required a system to control the manipulator arm they had developed for nuclear decommissioning work, Moog Applications Engineers were engaged to deliver the required product performance and appropriate Moog control system.

ModuMan had been designed by JFN around conventional hydraulic actuators. To ensure maximum maintainability, vital control elements needed to be located outside the operating cell. The 6-axis manipulator arm is necessary to grasp and move materials weighing up to 100 kg, reaching 2.3 m through a 270 mm diameter access port in a radioactive environment.

Moog delivered a control system comprising Moog Servo Controllers, Servo Drives, and Motion Control software and modelling and simulation of the product design.

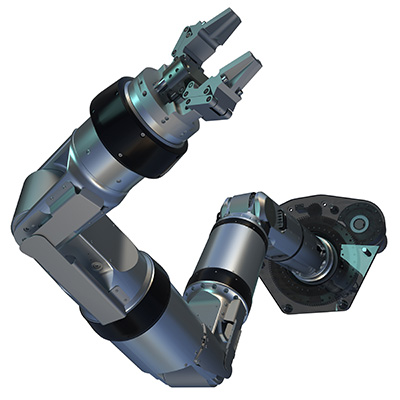

The James Fisher Nuclear ModuMan robotic arm, which is controlled by Moog servo technology

Moog’s engineering knowledge, control software and servo controller technology ensured the manipulator arm could deliver a 6-axis solution with accurate motion.

  • The Moog system enabled shoulder joint rotation of ±130º, Shoulder Pitch ±90 º, Elbow Pitch of ±130 º, Wrist Rotate ±130 º, Wrist Pitch ±130 º, Continuous Tool Rotate and End Effector grip width of 0-150 mm (0-5.9 in)
  • The desired lift, manoeuvrability and reach capability were achieved.
  • The project demonstrated a close and successful collaboration with James Fisher Nuclear and Moog Applications Engineers delivering a solution for an extreme environment.

Learn more about ModuMan >
